Wall Mount & Suspended Curtain Track Flex-I-Trac 132 ADC

FLEX-I-TRAC® Flexible Suspended Curtain Track System — Wall Mount & Pipe Backbone Installation

The Wall Mount & Suspended Curtain Track Flex-I-Trac 132 ADC is a versatile light to medium duty cyclorama I-beam track designed for walk-along curtain operation without cords, pulleys, or master carriers — in installations where the track is mounted to a wall or suspended from a pipe backbone rather than attached directly to the ceiling surface. This suspended curtain track system is ideal for stage and TV studio curtains, industrial welding booth enclosures, and any application requiring a flexible curtain track that cannot be ceiling-mounted.

The Flex-I-Trac 132 ADC track channel can be curved on-site to virtually any degree (minimum 2-foot radius) or factory curved at 12-inch radius to custom layouts. This page covers the wall mount and suspended installation hardware set, which includes hanging clamps, threaded rod adapters, and universal wall brackets not available in the ceiling mount version. For the ceiling-only version, see Ceiling Mount Curtain Track Flex-I-Trac 132 ADC.

Key Features

• Wall & Suspended Installation — Mounts to walls or suspends from pipe backbone, threaded rod, or structural members where ceiling attachment is not available
• Flexible Curving — Track curves on-site or factory curved to virtually any degree, minimum 2-foot radius
• Walk-Along Operation — No cords, pulleys, or master carriers required
• Expanded Hardware Set — Includes hanging clamps, threaded rod adapters, and universal wall brackets specific to suspended and wall mount configurations
• Manufactured by ADC — Automatic Devices Company commercial and industrial curtain track systems

Installation Tips

• Use 1 carrier per foot of track for reliable support and smooth curtain operation
• For suspended installations, secure the track to a pipe backbone or use hanging clamps and threaded rod adapters for drop mounting
• Wall brackets (universal or with strut channel) are available for direct wall face attachment

Available Components — Wall Mount & Suspended

Includes all standard Flex-I-Trac 132 ADC components plus the following wall and suspended-specific hardware:

• Single Carrier — 1301
• Bumper Single Carrier — 1301-A
• Flex-I-Track 10 ft Length — 1300-10
• End Stop — 1309
• Splicing Clamp — 1324
• Ceiling Mount Clamp 1178
• Master Carrier — 1302
• Lap Clamp — 1307
• Nylon Ball Bearing Carrier — 1337
• Nylon Bumper Ball Bearing Carrier — 1337-A
• Nylon Ball Bearing Master Carrier — 1352
• 90 Degree Curve 2ft x 2ft — 1167
• BT1 Bending Tool
• BT2 Bending Tool

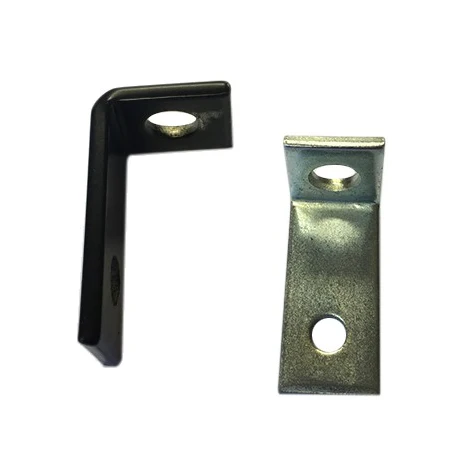

• Hanging Clamp — 1308 (wall/suspended specific)
• Threaded Rod Adapter — 1308-A (wall/suspended specific)

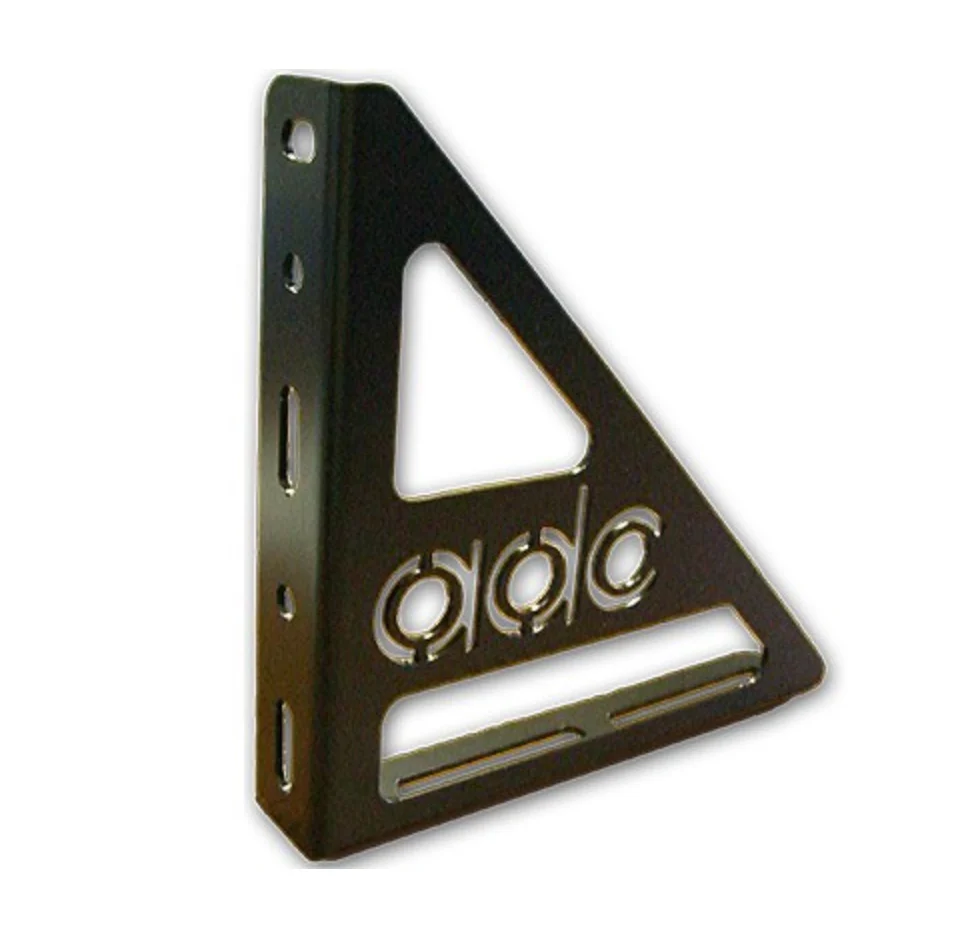

• Universal Wall Bracket — 1383-UNI (wall/suspended specific)
• Universal Wall Bracket w/ Strut Channel — 1483-UNI (wall/suspended specific)

Need a Custom Track System?

Ordering a Flex-I-Trac system for a complex stage, studio, or industrial curtain layout? Submit a request for a custom track system quote online. Our team will contact you to confirm dimensions and guide you through component selection for your suspended or wall mount configuration.

See Other Curtain Track Hardware

Ships In: 2 - 3 Days
